G 系列旋轉接頭是主要用于數控機床主軸尾端中心出水的一款高精度旋轉接頭。
產品特點：
精密軸承支撐，終身無需潤滑；
一組小彈簧提供平穩的彈簧力；
抗雜質密封面結構；
迷宮防水密封，可以防止豎直安裝泄
漏水流到軸承，造成軸承銹蝕；

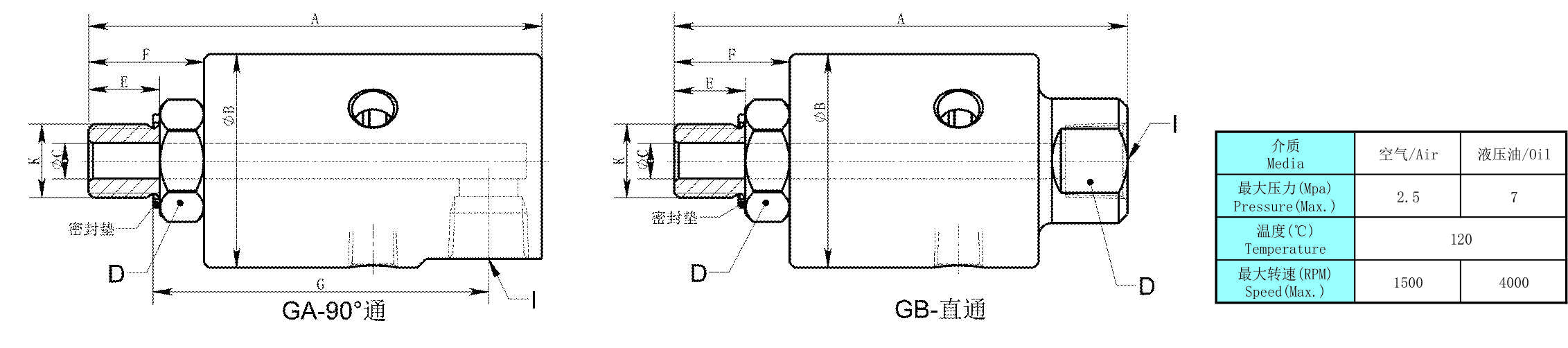

GA/GB 型旋轉接頭
| DN | 訂貨號 Order-No. | I | K | A | B | C | D | E | F | G |
| 6A | GA006.04 | Rc1/8" | G1/8"-LH | 72 | 34 | 3 | 17 | 12 | 21 | 53 |
| GA006.06 | M10x1-LH | 72 | 34 | 3 | 17 | 12 | 21 | 53 | ||
| 8A | GA008.04 | Rc1/4" | G1/4"-LH | 102 | 48 | 6.5 | 24 | 16 | 26 | 75.5 |
| GB008.04 | G1/4"-LH | / | ||||||||
| 10A | GA010.04 | Rc3/8" | G3/8"-LH | 102 | 48 | 8 | 24 | 16 | 26 | 75.5 |
| GA010.10 | 5/8"-18UNF-LH | |||||||||
| GB010.04 | G3/8"-LH | / | ||||||||
| GB010.10 | 5/8"-18UNF-LH |

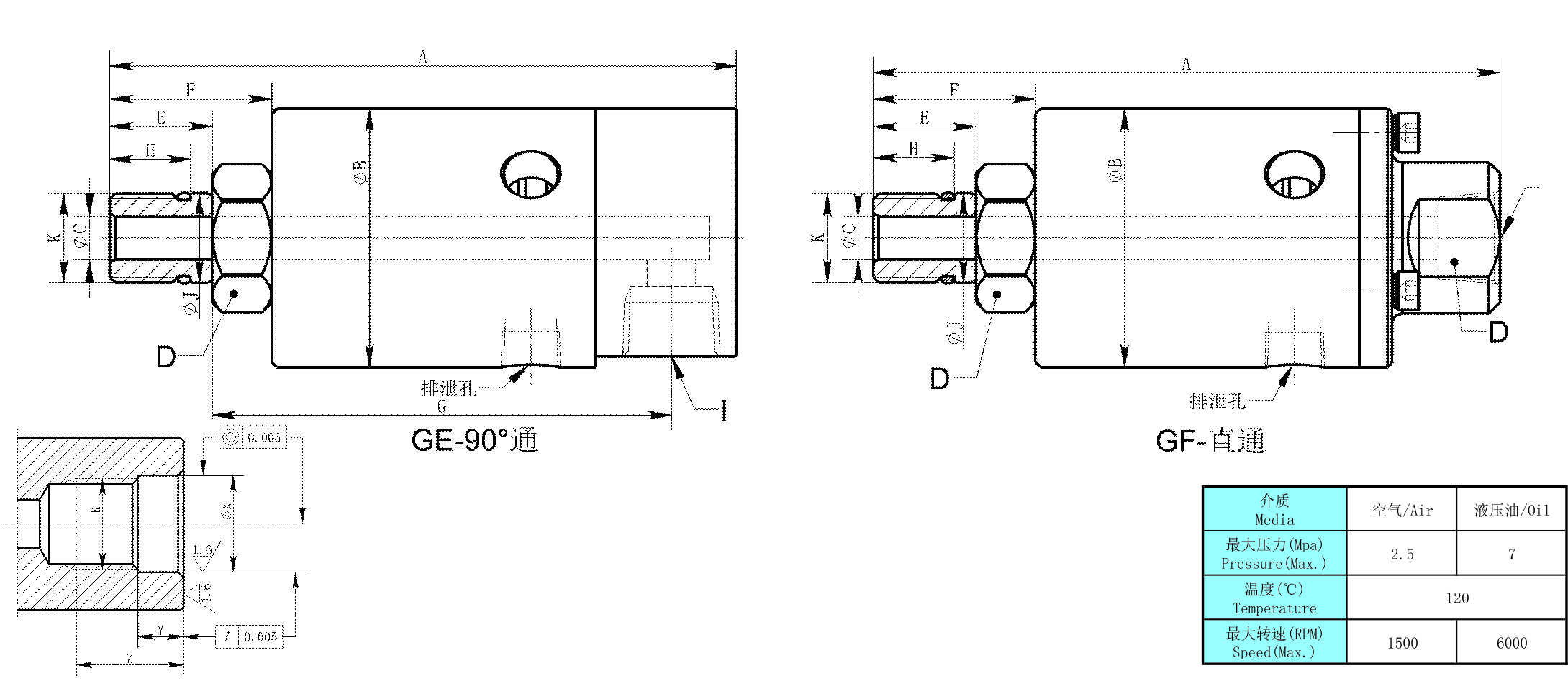

GE/GF 型旋轉接頭
| DN | 訂貨號 Order-No. | I | K | A | B | C | D | E | F | H | J | X | Y | Z | G |
| 8A | GE008.06 | Rc1/4" | M16x1.5-LH | 113 | 48 | 8 | 24 | 16 | 27 | 11 | 17.994/17.983 | 18.007/17.997 | 8.5 | 17 | 85 |
| GE008.10 | 5/8"-18UNF-LH | 116 | 19 | 30 | 15 | 16.650/16.645 | 16.662/16.652 | 8.5 | 20 | 85 | |||||
| GF008.06 | Rc1/4" | M16x1.5-LH | 113 | 48 | 8 | 24 | 16 | 27 | 11 | 17.994/17.983 | 18.007/17.997 | 8.5 | 17 | \ | |
| GF008.10 | 5/8"-18UNF-LH | 116 | 19 | 30 | 15 | 16.650/16.645 | 16.662/16.652 | 8.5 | 20 | \ | |||||
| 10A | GE010.06 | Rc3/8" | M16x1.5-LH | 113 | 48 | 8 | 24 | 16 | 27 | 11 | 17.994/17.983 | 18.007/17.997 | 8.5 | 17 | 85 |
| GE010.10 | 5/8"-18UNF-LH | 116 | 19 | 30 | 15 | 16.650/16.645 | 16.662/16.652 | 8.5 | 20 | 85 | |||||
| GF010.06 | Rc3/8" | M16x1.5-LH | 113 | 48 | 8 | 24 | 16 | 27 | 11 | 17.994/17.983 | 18.007/17.997 | 8.5 | 17 | \ | |
| GF010.10 | 5/8"-18UNF-LH | 116 | 19 | 30 | 15 | 16.650/16.645 | 16.662/16.652 | 8.5 | 20 | \ |

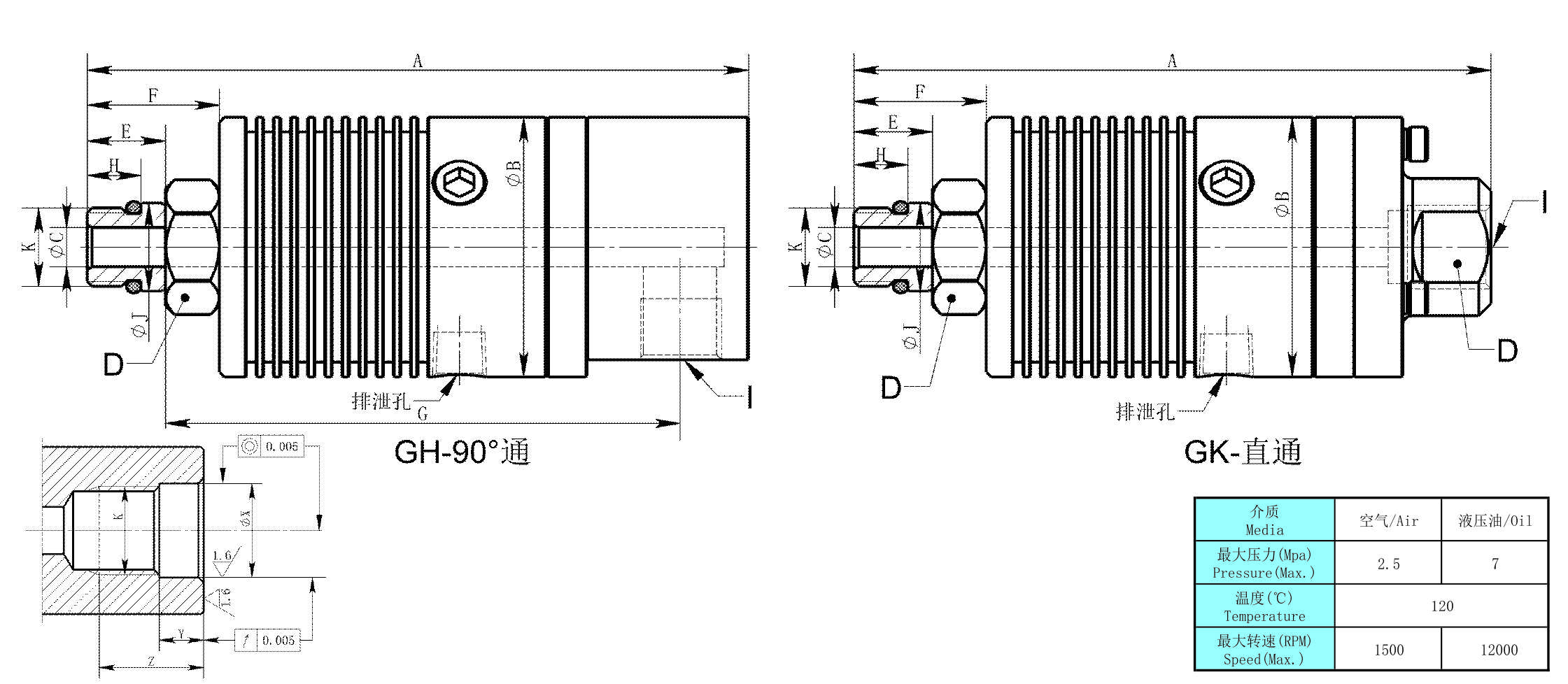

GH/GK 型旋轉接頭
| DN | 訂貨號 Order-No. | I | K | A | B | C | D | E | F | H | J | X | Y | Z | G |
| 8A | GH008A.06 | G1/4" | M16x1.5-LH | 135 | 53 | 8 | 24 | 16 | 27 | 11 | 17.994/17.983 | 18.007/17.997 | 8.5 | 17 | 105 |
| GH008A.10 | 5/8"-18UNF-LH | 138 | 19 | 30 | 15 | 16.650/16.645 | 16.662/16.652 | 8.5 | 20 | 105 | |||||
| GK008A.06 | G1/4" | M16x1.5-LH | 130 | 53 | 8 | 24 | 16 | 27 | 11 | 17.994/17.983 | 18.007/17.997 | 8.5 | 17 | \ | |
| GK008A.10 | 5/8"-18UNF-LH | 133 | 19 | 30 | 15 | 16.650/16.645 | 16.662/16.652 | 8.5 | 20 | \ | |||||
| 10A | GH010A.06 | G3/8" | M16x1.5-LH | 135 | 53 | 8 | 24 | 16 | 27 | 11 | 17.994/17.983 | 18.007/17.997 | 8.5 | 17 | 105 |
| GH010A.10 | 5/8"-18UNF-LH | 138 | 19 | 30 | 15 | 16.650/16.645 | 16.662/16.652 | 8.5 | 20 | 105 | |||||
| GK010A.06 | G3/8" | M16x1.5-LH | 130 | 53 | 8 | 24 | 16 | 27 | 11 | 17.994/17.983 | 18.007/17.997 | 8.5 | 17 | \ | |
| GK010A.10 | 5/8"-18UNF-LH | 133 | 19 | 30 | 15 | 16.650/16.645 | 16.662/16.652 | 8.5 | 20 | \ |
